PT-9000 pan tilt “80 kg load” Discontinued

large antenna dish pan tilt
  • Load capacity up to 80 kg
  • RS-485 Pelco D serial control
  • Made of Aluminum with stainless fittings
  • Advanced positioning support
  • AUX, extender and motorized lens control, continious rotation ect.

Description

Discontinued product.

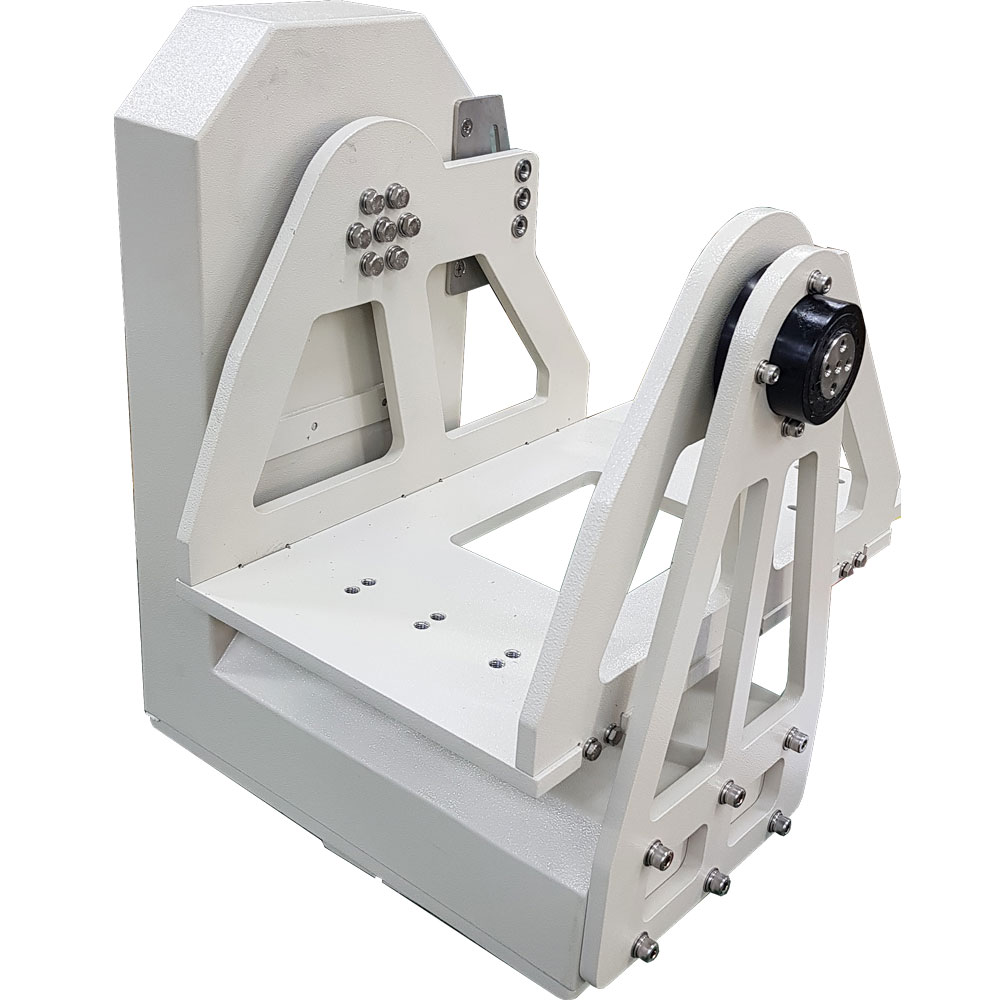

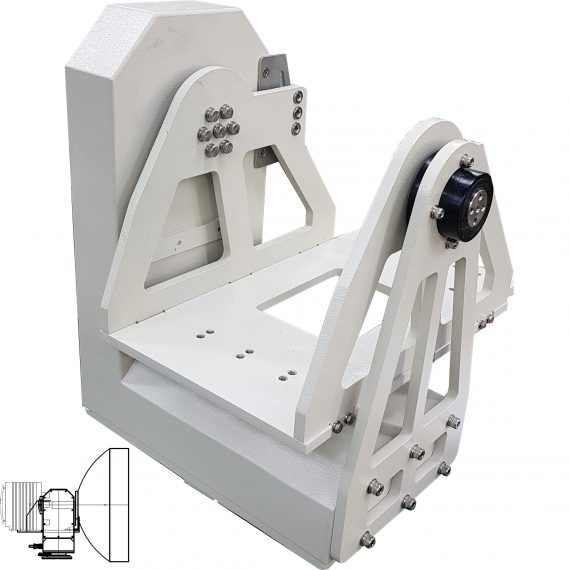

The PT-9000 pan tilt is a large sized pan tilt specially made for optimized balance of load, with a load capacity of up to 80 kg.

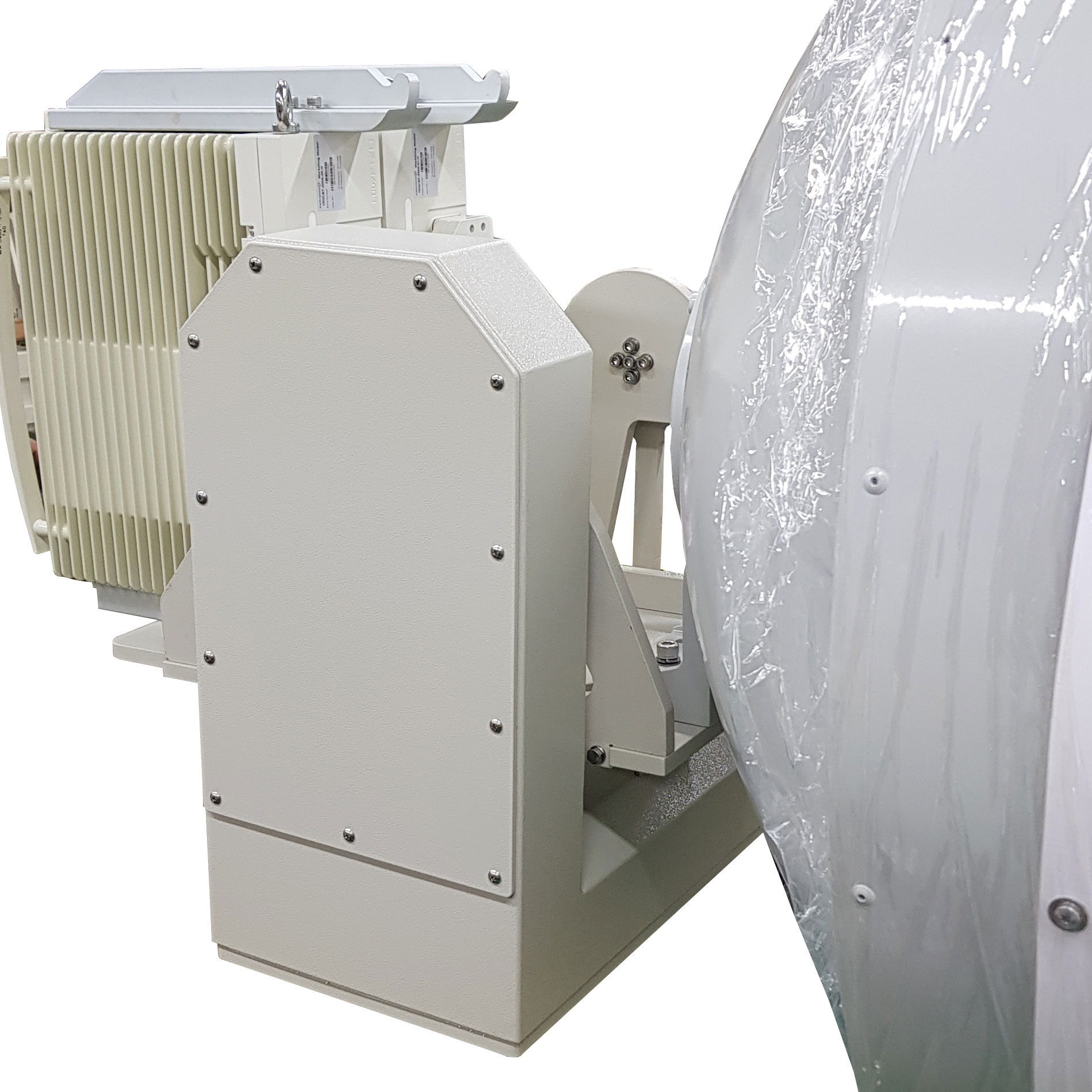

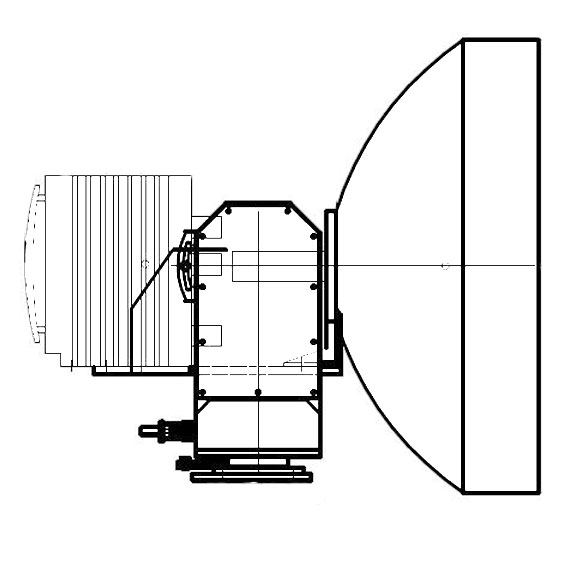

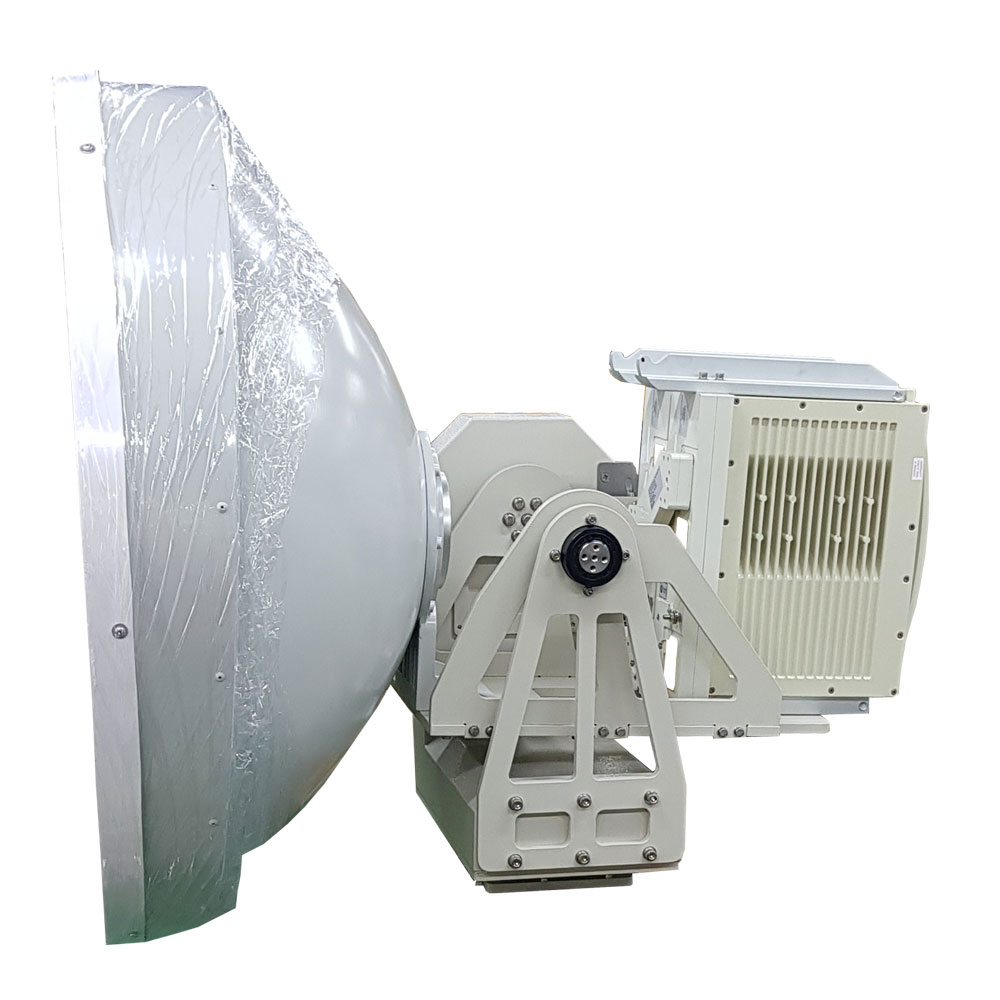

This type of pan tilt can handle large and heavy loads like large antenna dish, search light, long range camera, by balancing the load with a counter weight.
Many advanced control features, absolute position, Pelco extended protocol, variable speed, presets, etc.
The pan tilt is made of aluminum with fittings of stainless steel.

This heavy duty pan tilt is designed with DC motors and worm gears, a combination to get a high load capacity and a strong hold capacity.
Many options are available and the pan tilt can be custom made to your specific application.

Specifications for PT-9000 large antenna dish pan tilt

Material Aluminum
IP rating IP55 (IP66 optional)
Load capacity balanced 80 kg

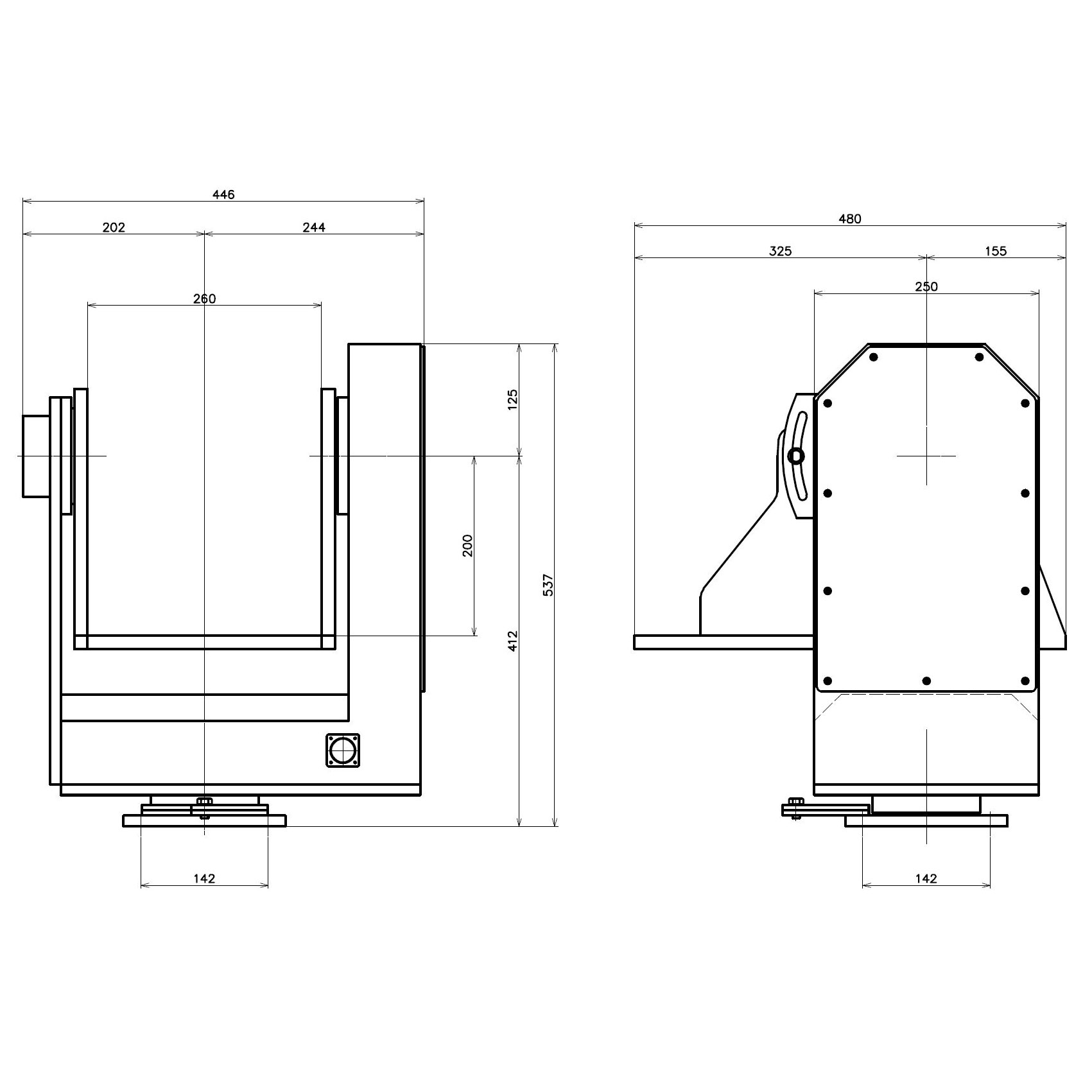

Size (LxHxW) 250 x 557 x 446 mm
Weight 35 kg
Pan angle 0-350° (360° continuous optional)
Tilt angle -15° to +15° (Can be customized for other angles)
Pan speed 0,1 – 12°/sec
Tilt speed 0,1 – 6°/sec
Absolute position support  Yes
Mechanical lash  <0,15° – 0,3° (0,06° – 0,1° optional)
Presets 100 presets
Accuracy 0,1°
Motor type DC motor
Gear type Worm gear
End-stop adjustable N0, factory setup only
Interface  RS-485 (RS-422 optional)
Baud rate 2400, 4800, 9600, 19200 bps, N,8,1
Protocol Pelco D
Address 1-256
Temperature range -10°C  +60°C-(-25°C  +60°C with optional heater)
Voltage supply  220VAC or 24 VDC
 Motorized lens control Optional
 Aux control Optional
 Video cable Optional
 Network cable Optional

Options

  • 360 degree endless rotation

    Endless rotation option, for continuous 360 degrees rotation. High quality slip rings are installed to transmit power, ethernet, video and control signals through the pan tilt unit.

  • Wiring and connectors

    Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.

  • Backlash option

    Standard backlash 0,15-0,3°, Optional 0,06-0,1°

  • Heavy duty pan tilt tripod
    Tripod

    Heavy duty tripod

  • Heater

    Internal heater to extend the temperture range to -25°C
