PT-7900 pan tilt “80 – 100 kg load”

very large pan tilt positioner
  • Load capacity up to 100 kg
  • RS-485 Pelco D serial control
  • Made of Aluminum with stainless fittings
  • Advanced positioning support
  • Custom wiring, AUX, extender and motorized lens control, power, ethernet ect.

Description

The PT-7900 pan tilt is a very large sized pan tilt with a load capacity of up to 100 kg. Many advanced control features, absolute position, Pelco extended protocol, variable speed, presets, motorized lens and AUX control.  The pan tilt is made of aluminum and all fittings are made of stainless steel.

This heavy duty pan tilt is designed with DC motors and worm gears, a combination to get a high load capacity and a strong hold capacity.
Many options are available and the pan tilt can be custom made to your specific application.

Specifications for PT-7900 heavy duty pan tilt

Material Aluminum
IP rating IP55 (IP66 optional)
Load capacity





Top mount 80 – 100 kg

Pan torque : 9.72kgf-meter =  95.32 N.m

Tilt torque : 12.1825kgf-meter = 119 N.m

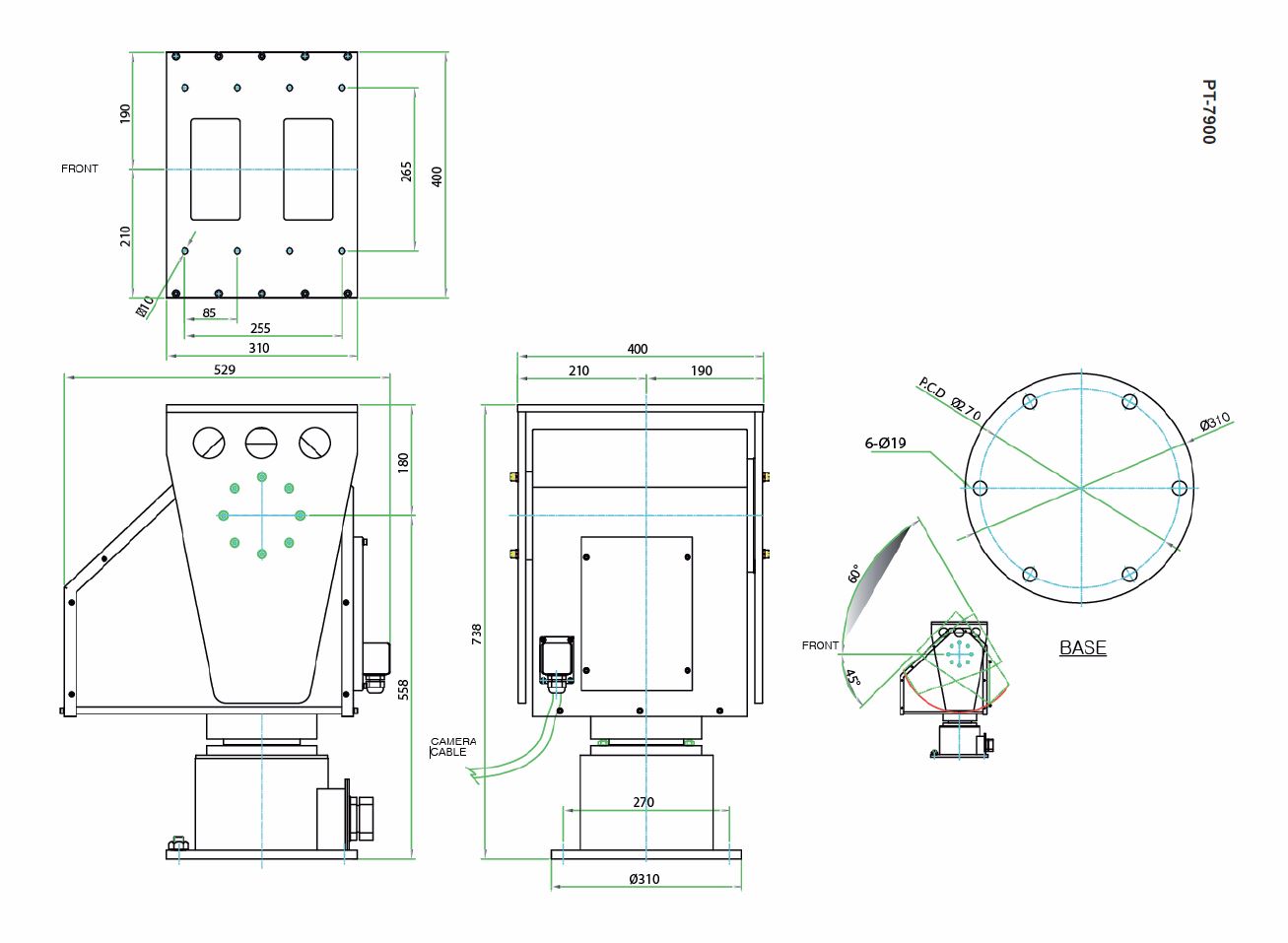

Size (LxHxW) 529 x 738 x 400 mm
Weight 110 kg
Pan angle 0-355° (360° continuous optional)
Tilt angle -30° to +30°  (optional -60° to +45°)
Pan speed 0,1 – 13°/sec
Tilt speed 0,1 – 8°/sec
Absolute position support  Yes
Preset accuracy 0,1° + backlash
Position repeatability 0,1° + backlash
Presets 100 presets
Backlash 0,15-0,3° (Optional 0,06-0,1°)
Motor type DC motor
Gear type Worm gear
End-stop adjustable Not possible (only by factory setup)
Interface  RS-485
Baud rate 2400, 4800, 9600, 19200 bps, N,8,1
Protocol Pelco D
Address 1-256
Temperature range -10°C  +60°C-(-25°C  +60°C with optional heater)
Voltage supply  24 VDC
Power consumption  Standby 0,2A, No load 0,6A, Max load 2A
Standard Wiring ST10 (Custom wiring can be done)

Options

  • 360 degree endless rotation

    Endless rotation option, for continuous 360 degrees rotation. High quality slip rings are installed to transmit power, video and control signals through the pan tilt unit.

  • Wiring and connectors

    Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.

  • Backlash option

    Standard backlash 0,15-0,3°, Optional 0,06-0,1°

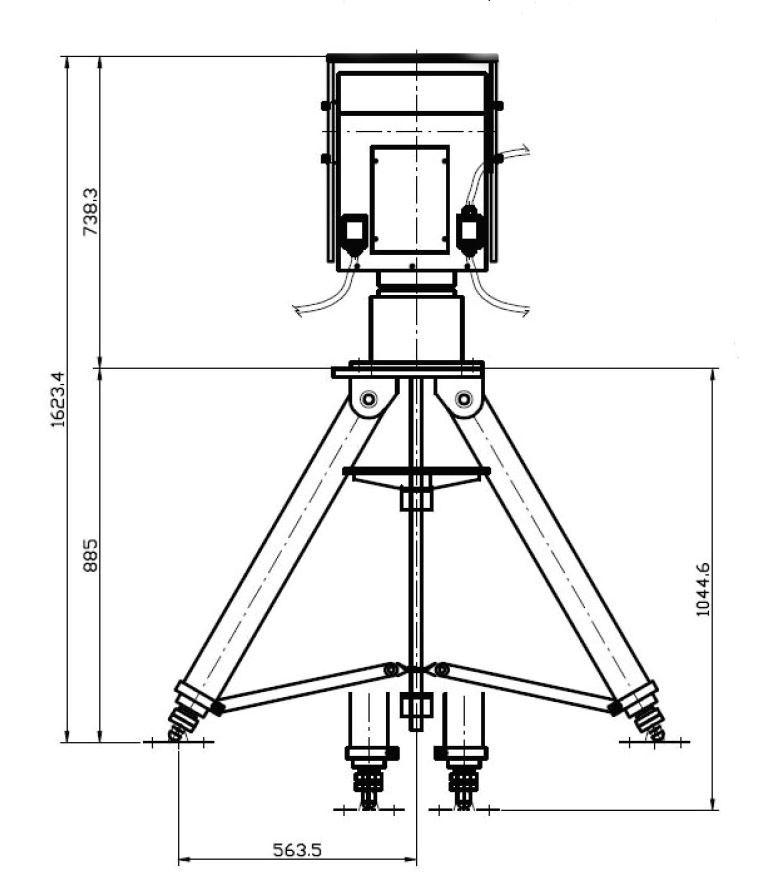

  • Tripod

    Heavy duty tripod made specifically for the PT-3002 pan tilt

  • Heater

    Internal heater to extend the temperture range to -25°C

Videos

This is a demo video of the PT-7900
