PT-2075AC pan/tilt “75 kg load” (DISCONTINUED)

  • Load capacity up to 75 kg
  • Direct AC drive
  • Made of Aluminum with stainless fittings

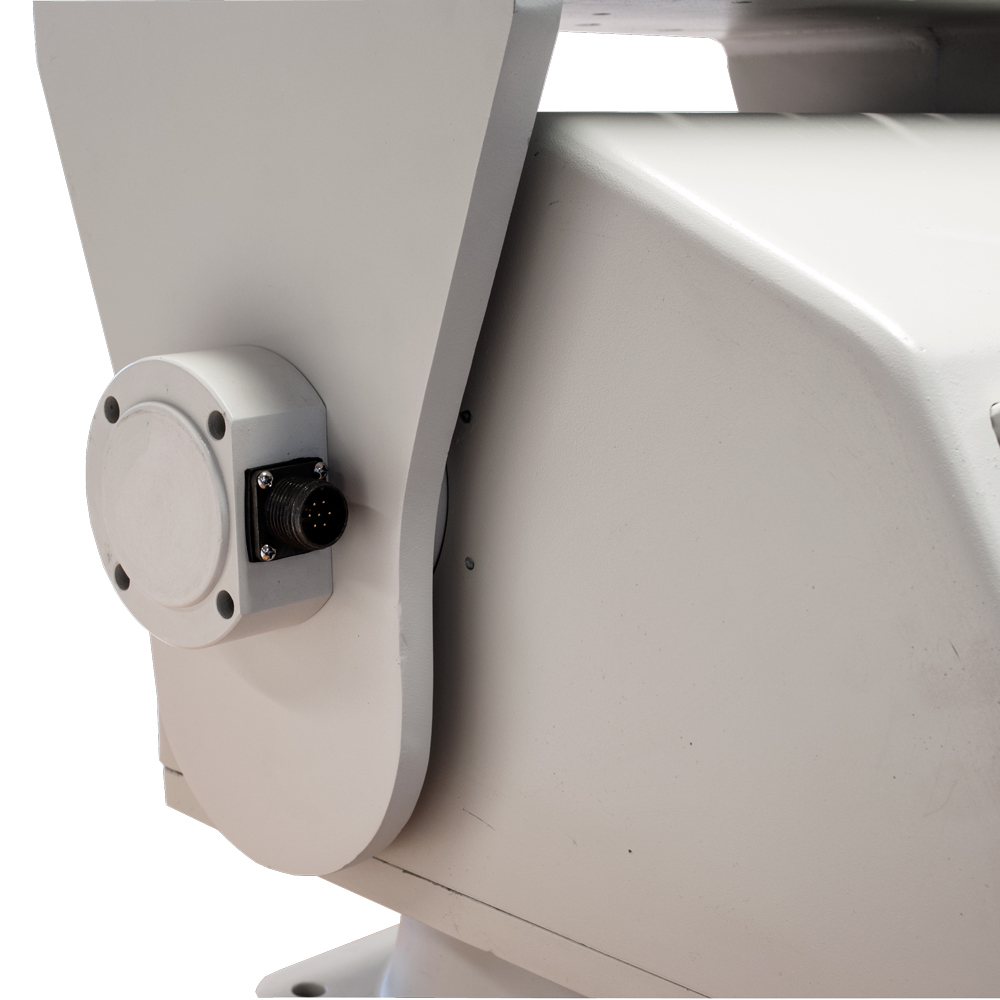

  • Built-in feedback potentiometers
  • IP66 Pan tilt head

Description

This product has been discontinued.

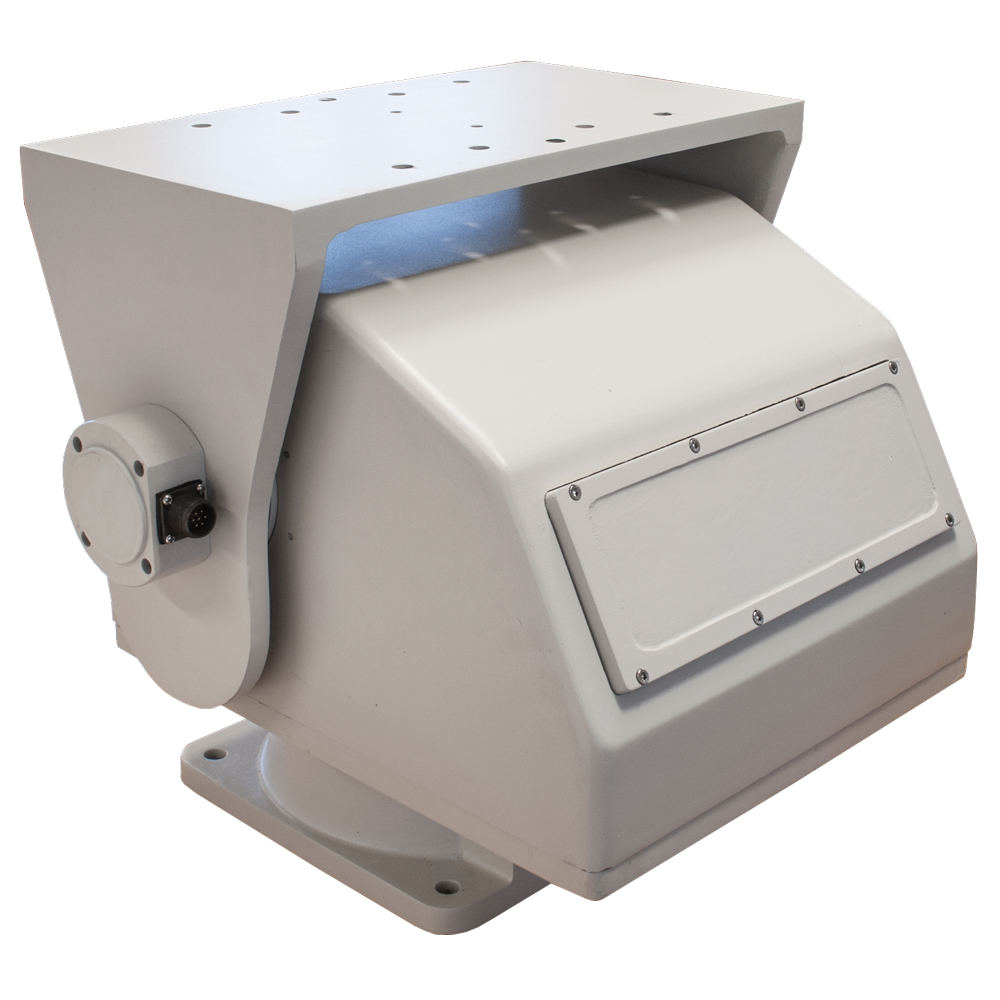

The PT-2075AC pan and tilt is a very large sized pan tilt with a load capacity of up to 75 kg and can be controlled by direct DC voltage from a joystick or from an external RS-485 telemetry receiver.
The unit is made of aluminum and all fittings are made of stainless steel. The pan/tilt is IP66 enviroment rated.

Specifications for PT-2075AC very large sized pan and tilt

Material Aluminum
IP rating IP66
Load capacity Top mount 75 kg

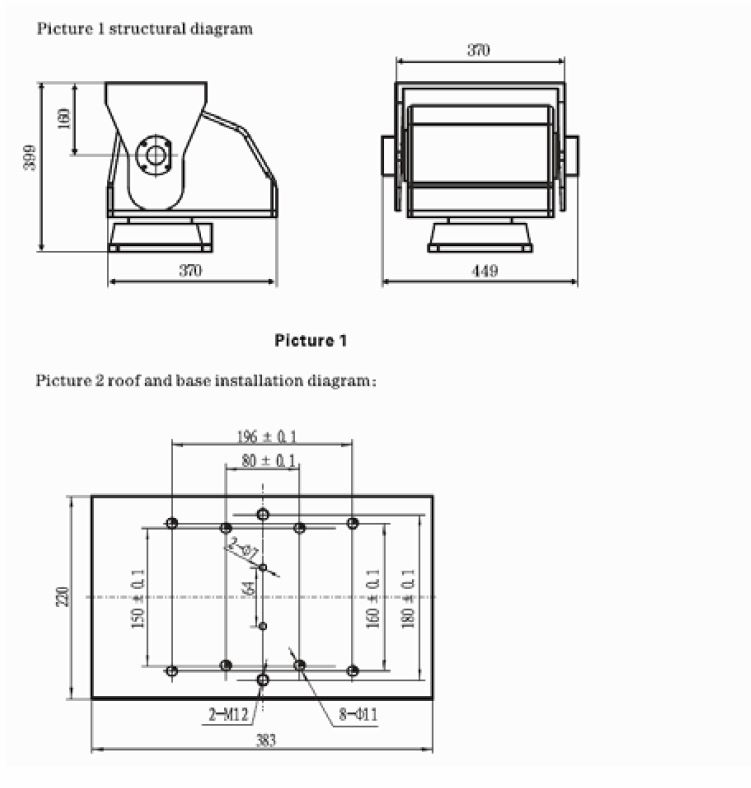

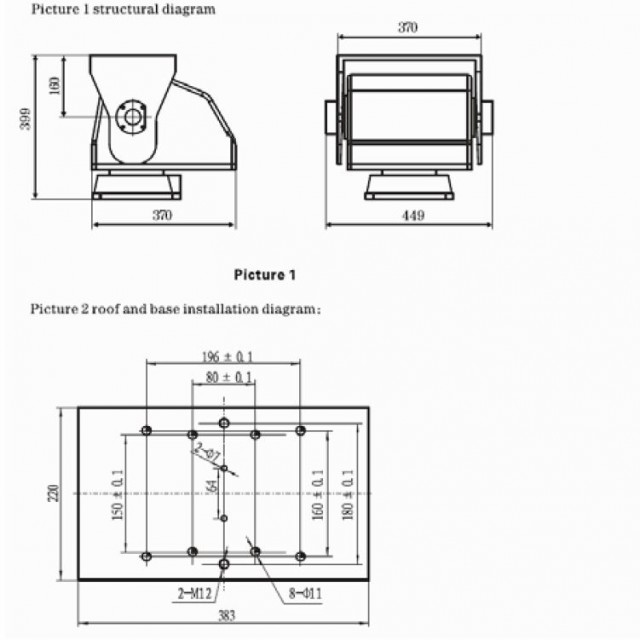

Size (LxHxW) 449 x 399 x 370 mm
Weight 42 kg
Pan angle 0-355°
Tilt angle -70° to +20°
Pan speed 3,65 °/sec (Fixed speed)
Tilt speed 1,5 °/sec (Fixed speed)
Absolute position support  No
Electric position accuracy NA
Mechanical lash  <0,5°
Presets NA (potentiometers optionally)
Preset accuracy NA
Motor type AC motor
Gear type NA
End-stop adjustable NA
Interface  220VAC direct drive
Baud rate NA
Protocol NA
Address NA
Temperature range -30°C  +50°C with optional heater
Voltage supply 220VAC direct drive
Power consumption Pan 47W / Tilt 44W
 Motorized lens control  No
 Aux control  No
 Video cable  NA
 Network cable  NA
