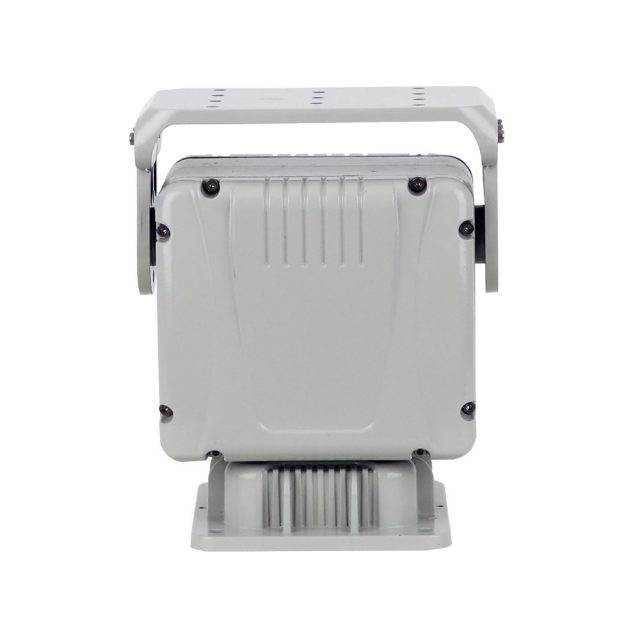

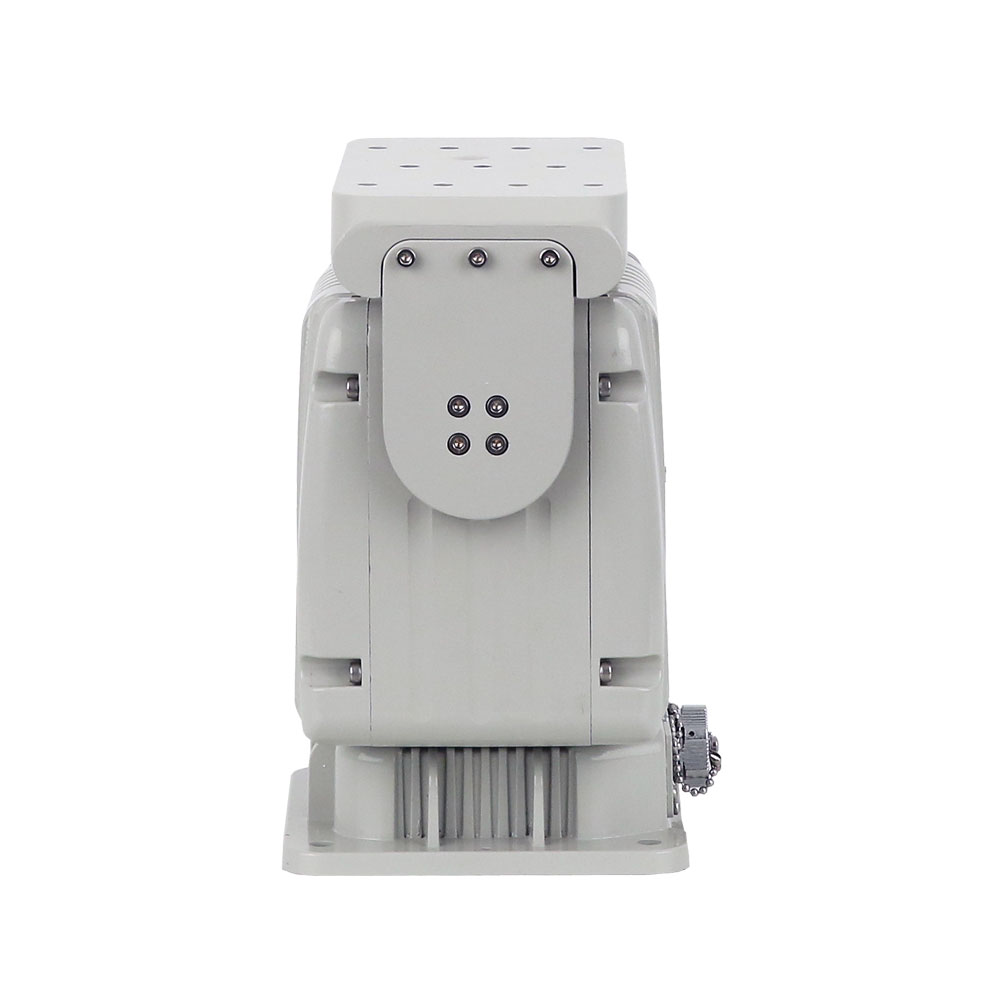

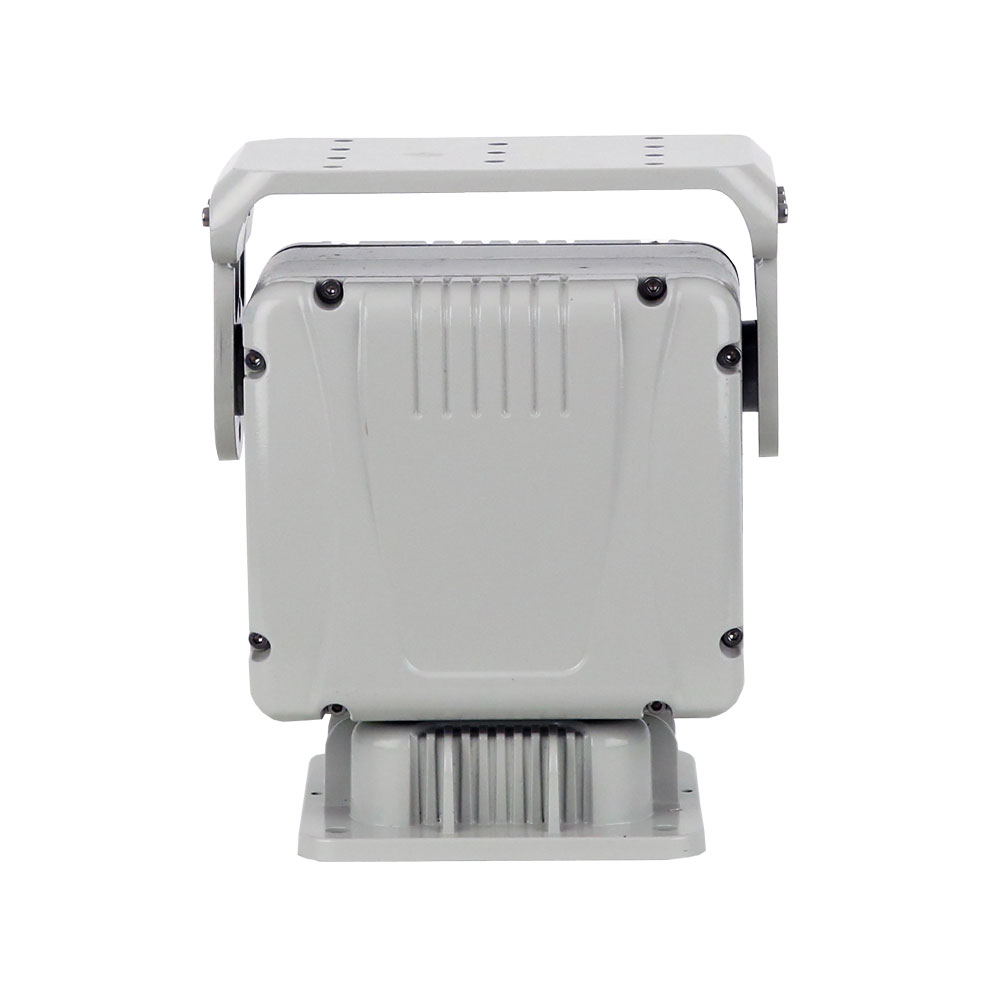

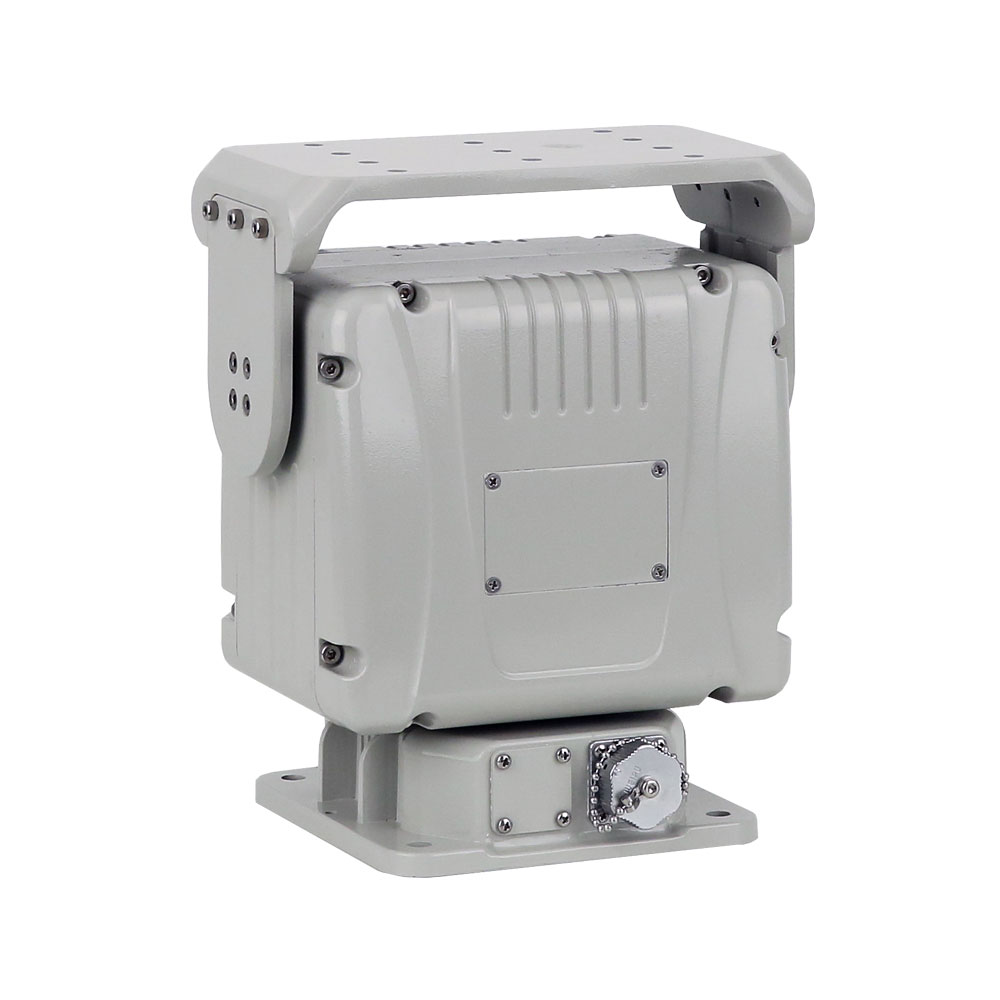

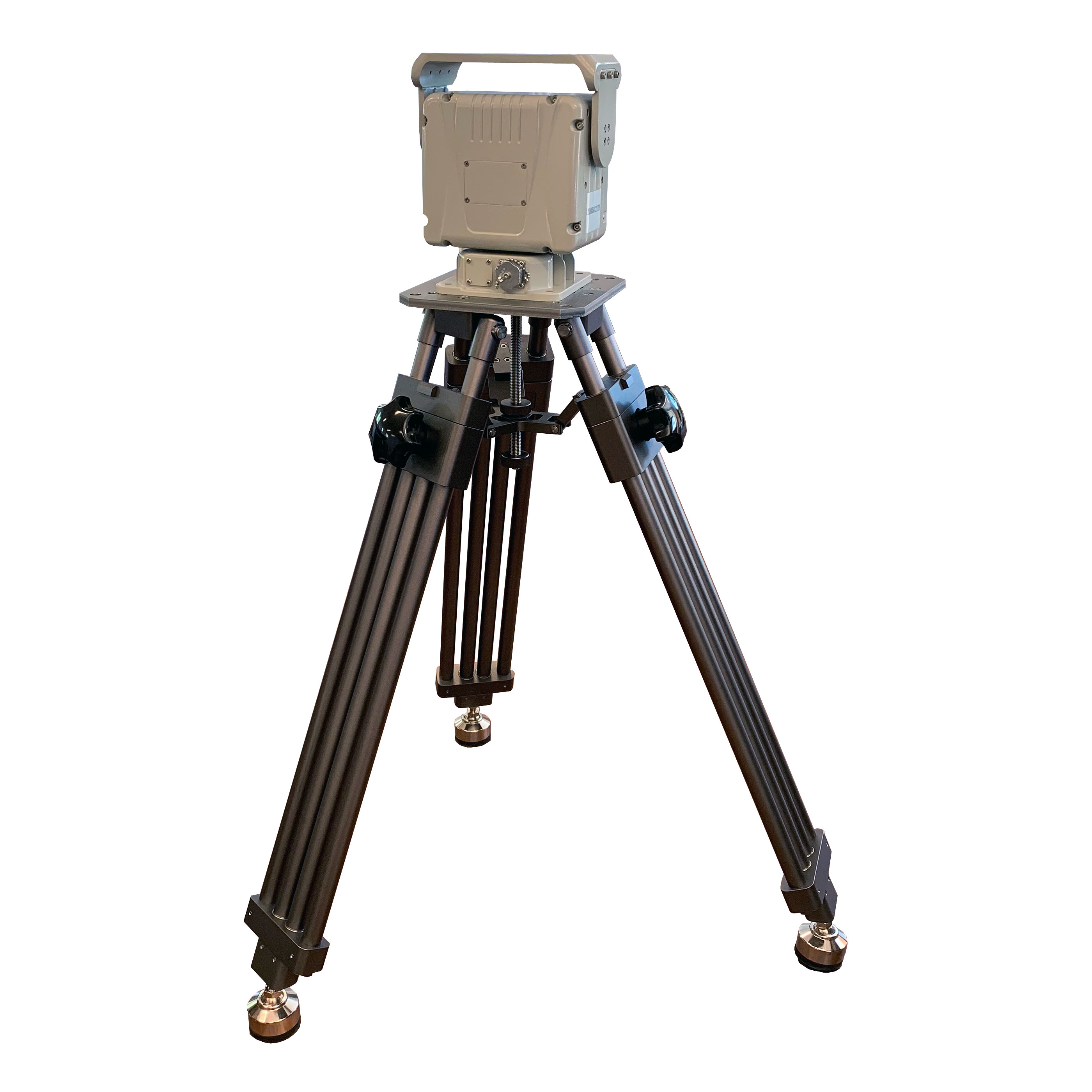

PT-1015 small size pan and tilt “10 kg load”
- Load capacity up to 10 kg
- RS-485/422 Pelco D serial control
- With endstops or 360 endless rotation
- Advanced positioning support - Angle readout
- Optional ethernet wiring, Motorized lens control, custom wiring
Description
The PT-1015 pan and tilt is a small size PT unit with a load capacity of up to 10 kg.
Many advanced control features, absolute position, angle set and readout, Pelco D extended commands protocol, continuous rotation option, variable speed in 64 steps, set and goto presets, worm gear for self lock and stepmotors for high precision 0,1 degree.
The pan tilt units can be customized and custom wired to your application.
Specifications for PT-1015 pan and tilt |
|
|---|---|
| Material | Aluminum |
| IP rating | IP66 |
| Load capacity | Top mount up to 10 kg |

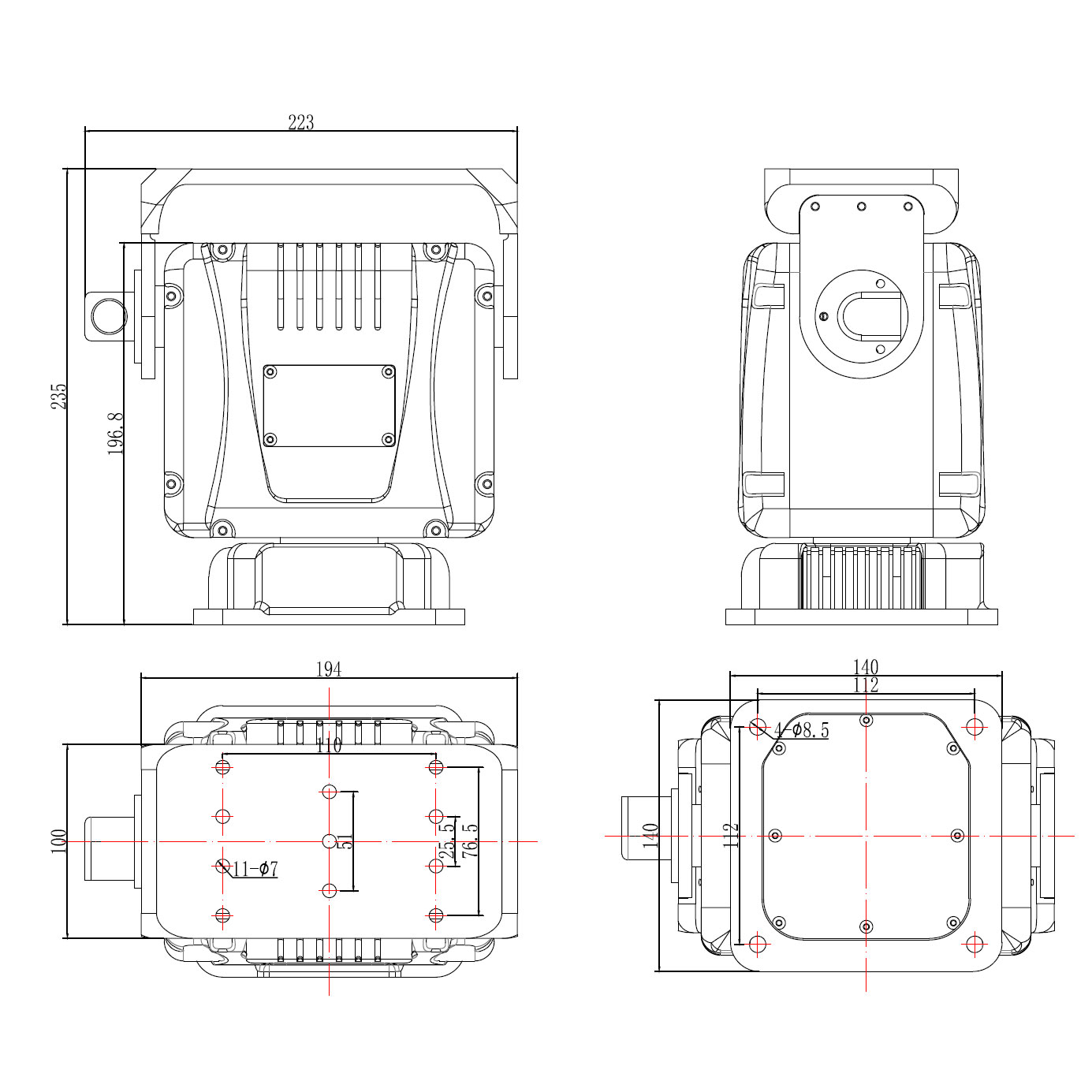

| Size (LxHxW) | 133 x 203 x 170 mm |
| Weight | 5,5 kg |
| Pan angle | 0-340° with endstop (option: 360° continuous rotation) |
| Tilt angle | -60° to +60° (option: custom angles up to -90° to +90°) |
| Pan speed | 0,01 – 30°/sec (64 step) |
| Tilt speed | 0,01 – 15°/sec (64 step) |
| Absolute position support | Yes (QUERY and SET commands for angle set and readout) |
| Self-test | No self-test as default. (Can be enabled by a command) |
| Mechanical lash | <0,2° |
| Presets | 100 presets |
| Preset accuracy | <0,1° (Lash electronically compensated) |
| Position repeatability | <0,1° (Lash electronically compensated) |
| Motor type | Step motor |
| Gear type | Wormgear |
| End-stop adjustable | No, endstops are set when manufactured. |
| Wiring | STx wiring or customized wiring (lens and aux control optional) |
| Interface | RS-485/422 |
| Baud rate | 2400, 4800, 9600, 19200 bps, N,8,1 |
| Protocol | Pelco D with extended commands |
| Address | 1-256 |
| Temperature range | -25°C +65°C |
| Voltage supply | 24 VDC |
| Power consumption | Standby 0,07A, Max load 2A |
Options
-

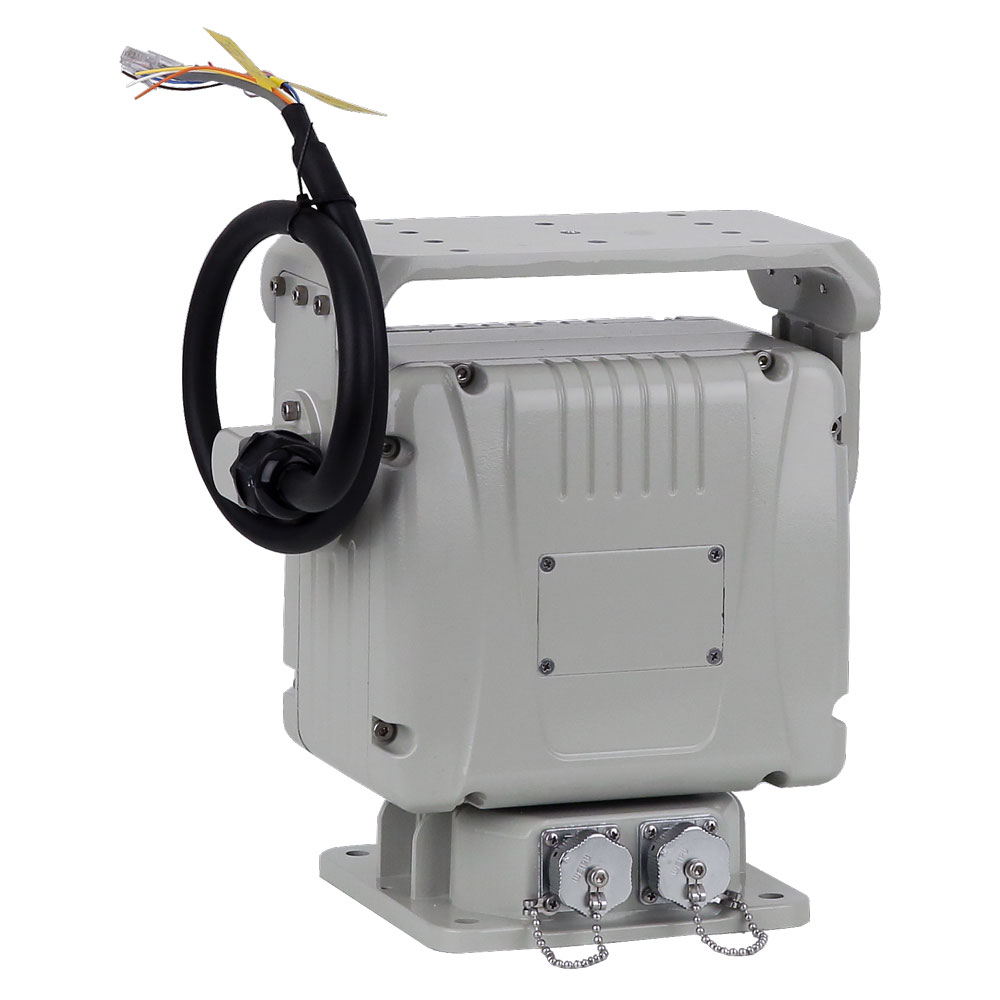

360 degree endless rotation
Endless rotation option, for continuous 360 degrees rotation. High quality slip rings are installed to transmit power, video and control signals through the pan tilt unit. optionally Mb or GigE ethernet.
-
Wiring and connectors
Custom wiring and connectors can be ordered, Network cable can be installed optionally.
Videos
This is a demo video of the PT-3002, but the PT-1015 are controlled in the exact same way:
